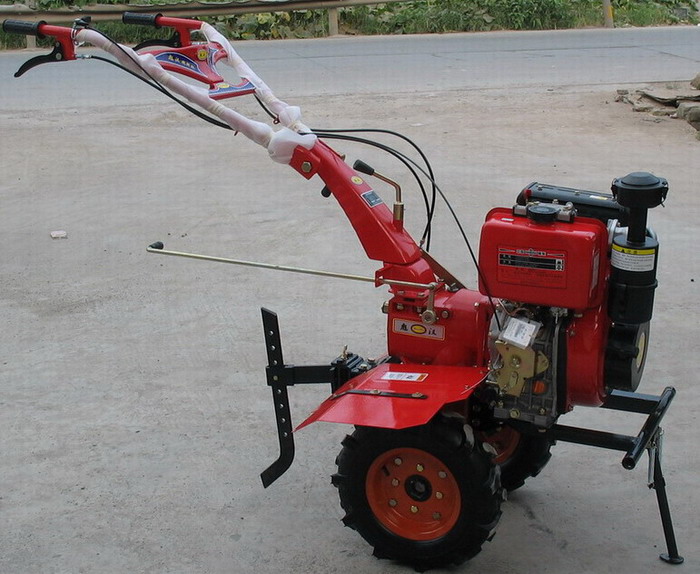

| 旋耕機Mini tiller |
1 |
項目及型號Items and models |
BH 186 |
| 2 |
包裝Dimentions (mm) |
1095×565×880 |
| 3 |
耕寬Tilling scope(mm) |
1100 |
| 4 |
耕深Tilling depth (mm) |
150-300 |
| 5 |
檔位Gear shifting |
0,1,2,-1 |
| 6 |
運行方式Main running-in methd |
機器齒入Machine grind-in |
| 7 |
檔位距離Gear distance (mm) |
500 |
| 8 |
效率Productivity (mu/h) |
0.8-1.8 |
| 9 |
凈重N.G. (kg) |
120 |
| 發動機Engine |
10 |
發動機型號Engine model |
186F |
| 11 |
發動機形式Engnie type |
單缸，垂直，風冷，4沖程，直接注入
Single-cylinder, vertical, air-cooled,
4-stroke, direct injection |
| 12 |
缸徑×行程Bore×stroke (mm) |
86×70 |
| 13 |
排量Displacement (L) |
0.406 |
| 14 |
額定功率Rated power （Kw/rpm） |
6.5/3600 |
| 15 |
啟動方式Starting system |
手拉反沖式Recoil start |
| 16 |
油箱容積Fuel tank capacity (L) |
5.5 |
| 17 |
燃油型號Fuel number |
No.-10(winter) |
| 18 |
潤滑油容積Lube capacity (L) |
1.65 |
| 19 |
潤滑油型號Suitable lube |
SAE10W, above CC grade |
| 20 |
潤滑油方式Lube mode |
Pressure splash mode |
